Org-Mode AST Investigation Tool

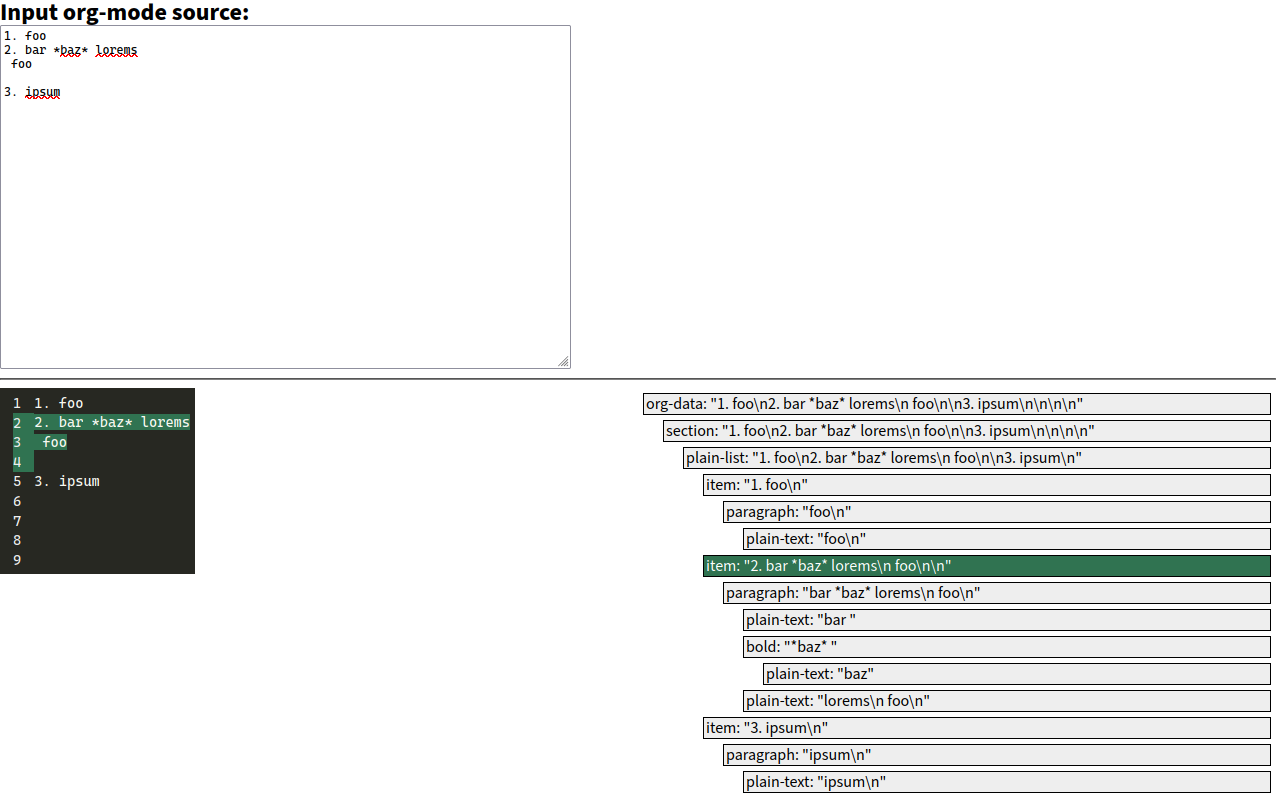

This repository contains a slapdash tool to make visualizing the abstract syntax tree of an org-mode document easier. Write your org-mode source into the top text box, and below on the right it will create a clickable tree of the AST. When you click on a node, the contents of that node will be highlighted on the left.

Running

Running in docker is the recommended way to run this. It creates a consistent working environment, without impacting (or requiring you to install) emacs, org-mode, or rust.

Docker

First we need to build the docker container. On the first run, this will pull the emacs and org-mode source code so this build will take a while the first time. After that, subsequent builds should be fast because docker caches the layers.

# from the root of this repository:
make --directory=docker

Next we need to launch the server:

docker run --rm --publish 3000:3000/tcp org-investigation

This launches a server listening on port 3000, so pop open your browser to http://127.0.0.1:3000/ to access the web interface.

No docker

You will need a fully functional rust setup with nightly installed (due to the use of exit_status_error). Then from the root of this repo you can launch the server by running:

cargo run --release

It will use your installed version of emacs and org-mode which may differ from what the docker users are using.

This launches a server listening on port 3000, so pop open your browser to http://127.0.0.1:3000/ to access the web interface.
